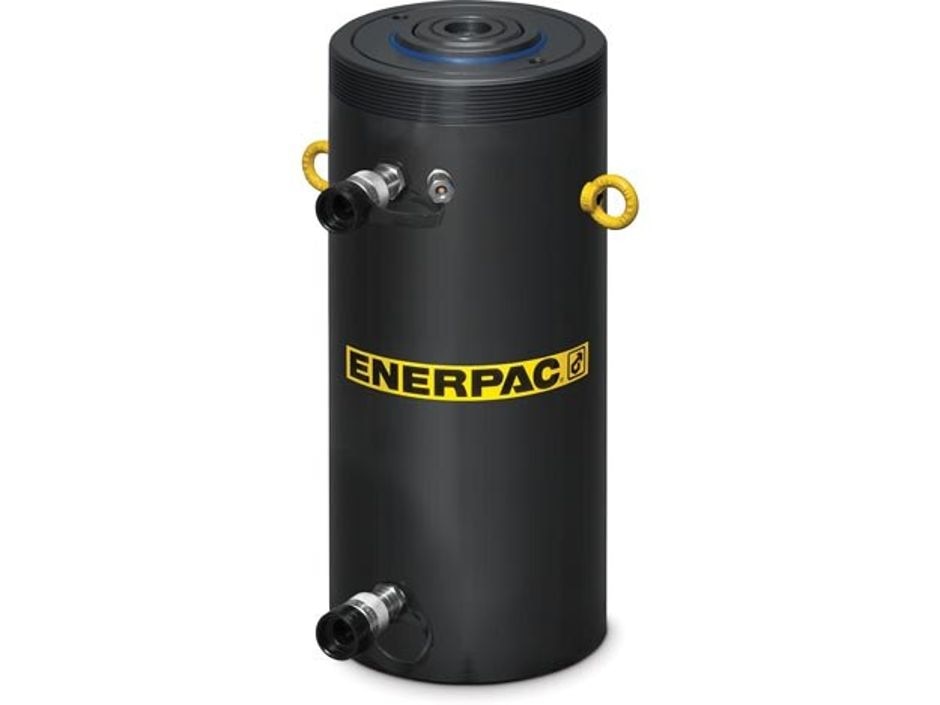

HCR50010, 575 Ton Capacity, 9.84" Stroke, 21.42" Collapsed Height
HCR50010, 575 Ton Capacity, 9.84" Stroke, 21.42" Collapsed Height - 500 Ton Capacity Class / 9.84 in Call For Quote
Couldn't load pickup availability
HCR50010, 575 Ton Capacity, 9.84" Stroke, 21.42" Collapse...
HCR Series Hydraulic Cylinders are double-acting which delivers a faster and more controlled return of the plunger compared to load/gravity return equivalents.
Enerpac High-Tonnage Cylinders are equipped with numerous special features to ensure the durability, safety, and performance needed for large-scale construction projects. Among these features are low-wear high-pressure seals, replaceable composite plunger support bearings, and a robust nitrocarburized finish on both the body and plunger.
- Double-acting for fast and controlled advance and retract
- Nitrocarburized surface resists side-loading and cyclic wear
- 10% side-load resistance over full cylinder stroke
- Weather protected, inside and out
- Upper and lower replaceable bearings support the plunger throughout the stroke
- Certified lifting eyes
- Base mounting holes
- Collar threads included on models up to 250 ton. Optional on 300 ton and higher.
- Maximum working pressure up to 10,000 psi (700 bar)
- Complies to ASME B30.1
