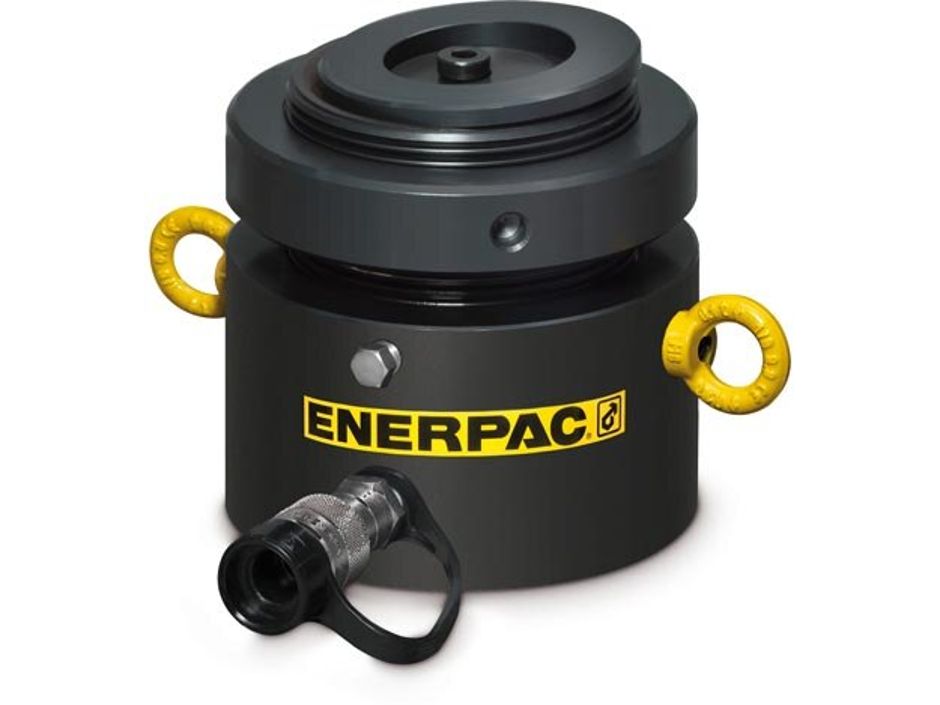

LPL5002, 575 Ton Capacity, 1.77" Stroke, 7.56" Collapsed Height
LPL5002, 575 Ton Capacity, 1.77" Stroke, 7.56" Collapsed Height - 500 Ton Capacity Class / 1.77 in Call For Quote
Couldn't load pickup availability
LPL5002, 575 Ton Capacity, 1.77" Stroke, 7.56" Collapsed ...
LPL-Series hydraulic cylinders are ideal for heavy-duty applications where clearance space is restricted. The lock nut provides the reassurance of mechanical load holding for extended periods, helping to ensure safety on the job site.
LPL-Series Low-Height Cylinders have a longer stroke of up to 1.97” (50 mm) as compared with our CUSP and CULP pancake cylinders, and the tilt saddle allows for up to 5 degrees of misalignment. All are finished with a nitrocarburized coating for enhanced durability and corrosion protection in harsh working environments.
- Lock nut provides mechanical load holding for a safe work environment
- Integrated tilt saddle allows for up to 5 degrees of misalignment
- Extreme low-height for use in confined areas
- 10% side-load resistance of maximum capacity
- Overflow port as stroke limiter to prevent plunger blow-out
- Single-acting, gravity-return
