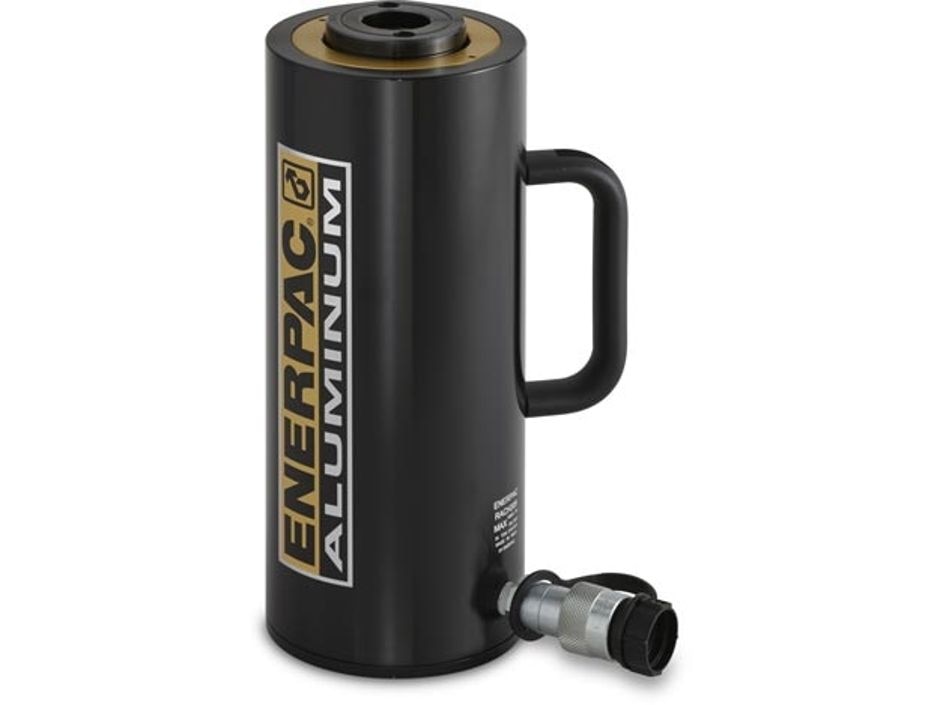

RACH306, 39.6 Ton Capacity, 5.91 in Stroke, Aluminum Hydraulic Cylinder

$3,11280 $3,89100
Shipping calculated at checkout.
Enerpac  |  SKU: RACH306

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Highlight title

Text to highlight a key feature of your product

Description

RACH-Series Hollow Plunger Hydraulic Cylinders (sometimes called center-hole cylinders) feature a hollow plunger with an internal thread to allow fixing to the component to be pulled. This makes them the ideal choice for when you need a lighter, more portable cylinder for applications such as tensioning, testing, pulling, and lifting. Each RACH Cylinder is rated for up to 10,000 psi (700 bar) and compliant with ASME B30.1.

Each RACH Cylinder is single-acting and uses a high-strength return spring for rapid retraction. All are equipped with bolt-on hardened steel saddles and a steel base plate for increased durability.

Aluminum is not only lightweight, but also inherently less corrosive than steel, which makes it a great material for use in many caustic environments. For enhanced protection, RACH Aluminum Cylinders are finished with an anodized hard coat finish to resist damage and extend cylinder life.

  • Hollow plunger design allows for both pull and push forces
  • Composite bearings increase cylinder life and side load resistance
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles included on all models
  • Floating center tube increases seal life
  • Steel baseplate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High-strength return spring for rapid cylinder retraction
  • CR400 coupler and dustcap included on all models
  • All cylinders meet ASME B-30.1 standards
