Enerpac  |  SKU: RCS302

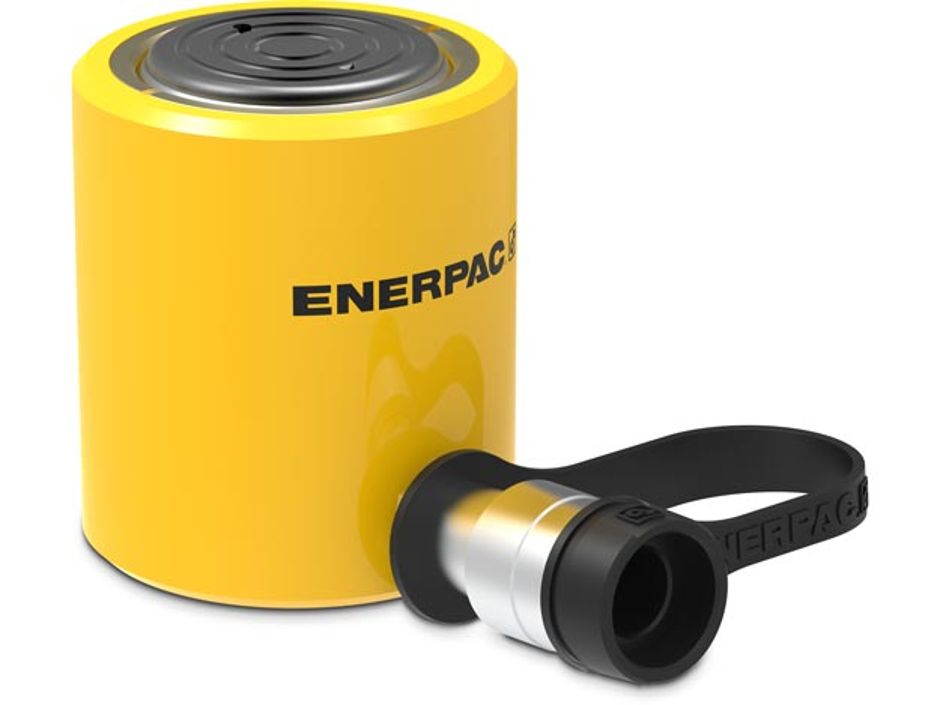

RCS302, 30 Ton Capacity, 2.44" Stroke, Low Height Hydaulic Cylinder

$1,06920 $1,18800
Shipping calculated at checkout.

Specifications

Maximum Operating Pressure (psi):
10,000

Capacity Class (tonnage):
30

Maximum Cylinder Capacity Advance (short tons):
32.4

Stroke (in):
2.44

Collapsed Height A (in):
4.63

Extended Height B (in):
7.06

Return Type:
Single-Acting, Spring Return

Plunger Type:
Solid

Material:
Steel

Cylinder Effective Area Advance (in2):
6.49

Oil Capacity Advance (in3):
15.82

Surface Treatment:
Paint

Coupler:
CR400 Coupler

Weight (lbs):
15

Product Highlights

-Lightweight, low profile design for use in confined spaces

-Baked enamel finish for increased corrosion resistance

-Plunger wiper reduces contamination, extending cylinder life

-CR-400 coupler and dust cap included on all models

-Grooved plunger end with threaded holes for mounting tilt saddles

-Plated steel plungers

-Single-acting spring return

RSM-Series Low Profile Hydraulic Cylinders provide superior durability, safety, and quality in a compact and convenient format. They’re the perfect choice for general lifting and production applications where space is limited.

A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.

RSM-Series Cylinders are a popular choice. Not only for general lifting, but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.

Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive.

Specification Page

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Enerpac

RCS302, 30 Ton Capacity, 2.44" Stroke, Low Height Hydaulic Cylinder

$1,06920 $1,18800

RSM-Series Low Profile Hydraulic Cylinders provide superior durability, safety, and quality in a compact and convenient format. They’re the perfect choice for general lifting and production applications where space is limited.

A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.

RSM-Series Cylinders are a popular choice. Not only for general lifting, but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.

Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RSM cylinders are different and include a powerful return spring, which is faster, convenient, and more productive.

Specification Page
