Holmatro  |  SKU: HFC 75 S 1.5

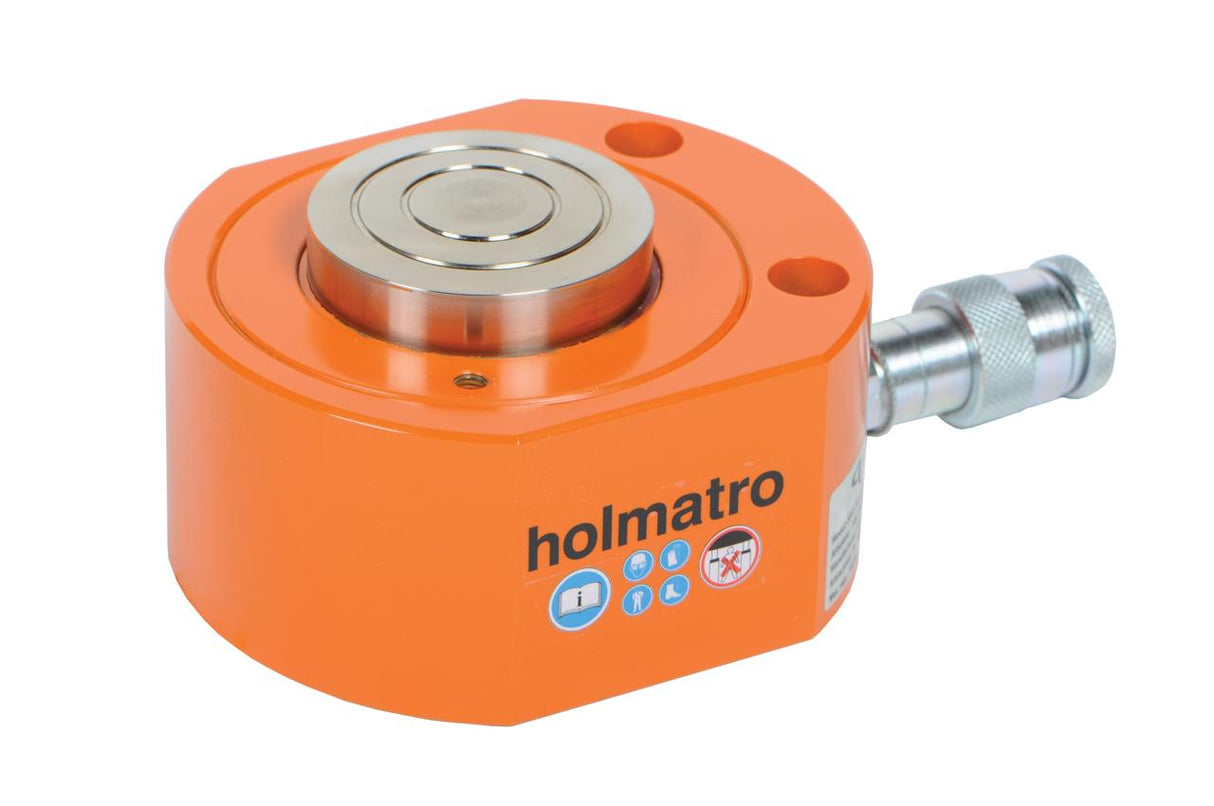

Holmatro HFC 75 S 1.5, Flat Cylinder, 75 Ton Capacity, .59" Stroke, 3.1" Collapsed Height

$1,52550 $1,69500
Shipping calculated at checkout.

Specifications

BASIC SPECIFICATION:
model HFC 75 S 1.5
max. working pressure 720 / 72 (bar/Mpa)
max. working pressure 10,443 psi
key words HFC75S1.5

PERFORMANCE:
tonnage 75 t
tonnage 165,347 lb
stroke 15 mm
stroke 0.6 in
closed height 80 mm
closed height
3.1 in
capacity 747.9 / 76.3 (kN/t)
capacity 168,135 lbf
effective pressure area 103.9 cm2
effective pressure area 16.1 sq. in.

GENERAL SPECIFICATIONS:
required oil content (effective) 156 cc
required oil content (effective) 5.3 oz
connection A 118
cylinder type flat
acting type single
return type spring
material steel

WEIGHT:
weight, ready for use 11 kg
weight, ready for use 24.3 lb

Product Highlights

-Compact, flat version, efficient in case of limited insertion space
-Stroke of 15mm on all models

Delivery and Shipping

1-2 Business Days for In Stock items. 7 Business Days Air Freight from Manufacturer. Call to confirm ship time.

FLAT CYLINDER HFC 75 S 1.5

Cylinders with a very low construction height and a lifting capacity of 5 up to 100 tons. Specially designed to address challenges posed by limited insertion space. These cylinders boast a remarkably low construction height while providing a robust lifting capacity ranging from 5 to 100 tons.

Standard supplied with:

  • Standard provided with fixing holes for easy assembly
  • Dirt scraper ring that protects against pollution and increases the life span of the cylinder.
  • Superior seal for an excellent static and dynamic sealing
  • Splined plunger, no saddle needed
  •  High flow female coupler A118
