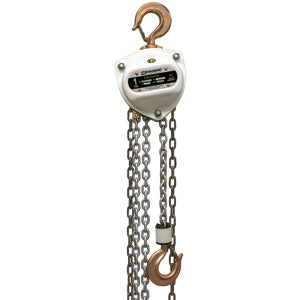

OZ LIFTING PRODUCTS SPARK RESISTANT HAND CHAIN HOIST

• OZ Lifting Products - OZ-SR Series
• Capacity (1/2 Ton up to 10 Ton)
• Type EX-F3 Spark Resistant
• Unique Hand Wheel Design – This feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles. Thus, the operator can use the hoist while standing to the side of, or even above the load without fear of the hand chain jamming.
• Minimal Load Lifting Effort – These hoists require 20% – 35% less effort than the competition. Lift heavy loads with ease. Ideal for frequent lifting/pulling applications.
• Fully Enclosed Gearing – This protects the gears from contamination and debris.
• Stainless Steel Hooks and Safety Latches – Each heavy duty stainless steel safety latch has a bolt and lock nut connection rather than roller pins used by most competitors. This feature facilitates easy latch changing in the field.
• Stainless Steel Hand Chain – Provides a durable non oily finish.
• Dacromet® Finish Load Chain – Provides a durable non oily spark resistant finish.
• Fully Machined Lift Wheel – This feature perfectly accepts the chain allowing for a smooth long lasting operation.
• Lifting or Pulling – This hand hoist can be used for lifting or pulling which makes for a more flexible and versatile tool.
• Low Headroom – Provides maximum lift by minimizing space taken up by the hoist, making it ideal in restricted space applications.
• Weather Proof Load Holding Brake – Both lever and chain hoists have a protected Weston Brake which holds the load during the entire operation. The hoists are also equipped with a unique twin pawl design.
• All Gears and Shafts Run on Roller Bearings – This feature provides smooth controlled operation as well as maintenance free lubrication.
• Copper Riveted ID Tags – These tags will not rust and will maintain clear distinct information for easy identification.

Standards – CE, ATEX 94/9EC (Ex II 2 GD c llC T4 IIIC T135°C), AS1418.2, ASME B30.16
