CROSBY  |  SKU: 1018507

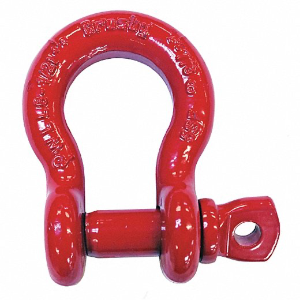

4-3/4 TON, 3/4", SELF-COLORED SCREW PIN ANCHOR SHACKLES

$4247 $4550
Shipping calculated at checkout.

4-3/4 TON, 3/4", SELF-COLORED SCREW PIN ANCHOR SHACKLES - 4-3/4 TON (3/4") Call For Quote


  • Crosby Screw Pin Shackles
  • Capacity : .33 Ton to 55 Ton
  • Hot-dip galvanized (G) or self colored (S).
  • Meets performance requirements of Grade 6 shackles.
  • Forged, Quenched & Tempered, with alloy pins.
  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Sizes 3/8 inch and below are mechanically galvanized.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certifications. Proof testing and certification available when requested at the time of order, charges will apply.
  • Approved for use at -40° F (-40° C) to 400° F (204° C).
  • All 209 and 210 shackles can meet charpy requirements of 31 ft-lb (42 Joules) avg. at -4° F (-20° C) upon special request.
  • Meets or exceeds all requirements of ASME B30.26.
  • Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • G-209 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271H, Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
  • Look for the Red Pin®... the mark of genuine Crosby quality.
