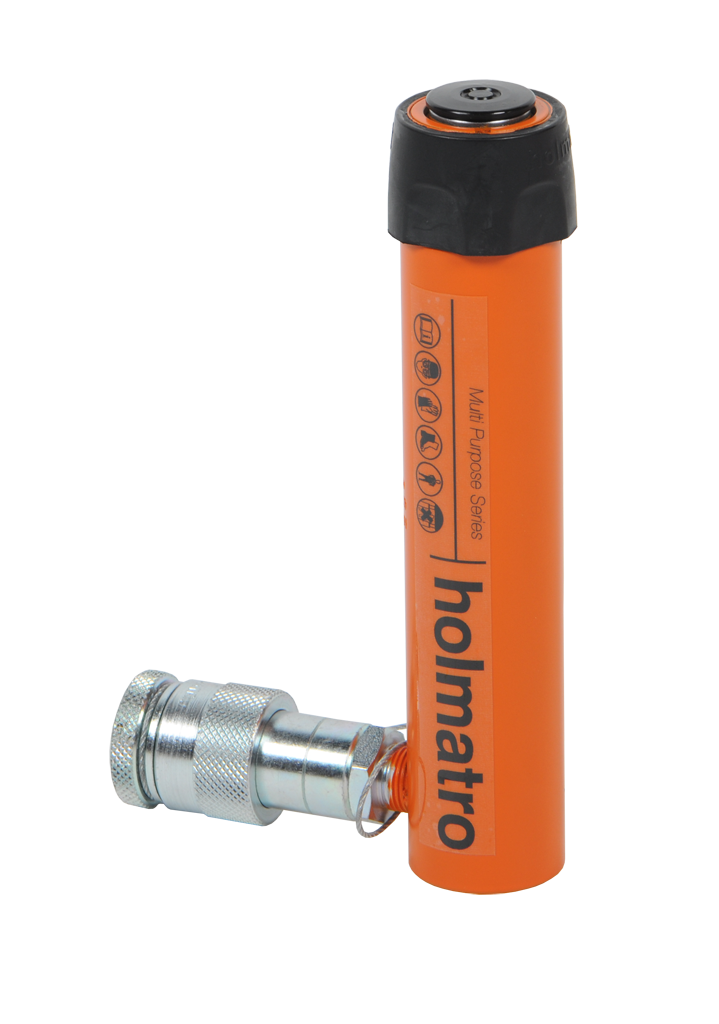

Holmatro HGC 5 S 5 Multi Purpose Cylinder, 5 Ton Capacity, 2" Stroke, 5.1" Collapsed Height

BASIC SPECIFICATIONS:
model HGC 5 S 5
max. working pressure 720 / 72 (bar/Mpa)
max. working pressure 10,443 psi
key words HGC5S5

PERFORMANCE:
tonnage 5 t
tonnage 11.023 lb
stroke 50 mm
stroke 2 in
closed height 130 mm
closed height 5,1 in
capacity 51 / 5.2 (kN/t)
capacity 11.465 lbf
effective pressure area 7.1 cm2
effective pressure area 1.1 sq. in.

GENERAL SPECIFICATIONS:
required oil content (effective) 35 cc
required oil content (effective) 1.2 oz
connection A 118
cylinder type multi purpose
acting type single
return type spring
material steel

WEIGHT:
weight, ready for use 1.3 kg
weight, ready for use 2.9 lb

Features & Benefits:
• Duplex power coating makes the plunger corrosion-resistant; the hard chrome top layer protects the plunger against scratches and prevents the adhesion of objects such as welding spatters
• Duo power ring; a combination of a superior seal and an extremely strong composite bearing for a longer life span
• Thread protector protects the thread on the cylinder housing
• XL saddle+; QPQ saddle protects the plunger against corrosion and limits undesired eccentric loads
• Collar thread and base mounting holes
• Internal plunger thread on all models to 50 tons
• High flow female coupler A118
• Flat saddle
