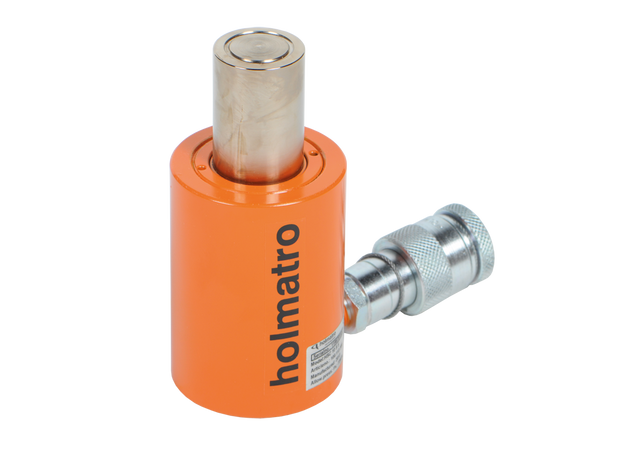

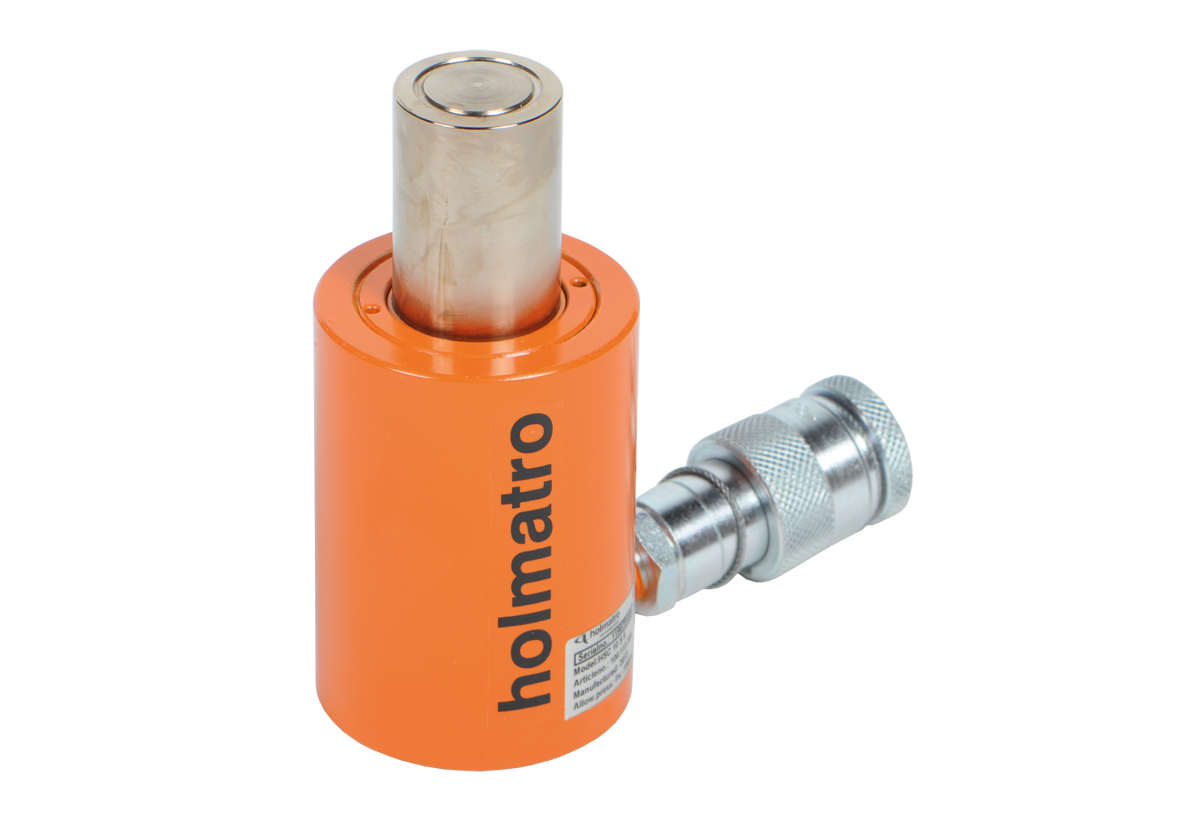

Holmatro HSC 10 S 5, Short Stroke Cylinder, 10 Ton Capacity, 2" Stroke, 3.9" Collapsed Height

BASIC SPECIFICATIONS:
model: HSC 10 S 5
max. working pressure: 720 / 72 (bar/Mpa)
max. working pressure: 10.443 psi
key words: HSC10S5

PERFORMANCE
tonnage: 10 t
tonnage: 22.046 lb
stroke 50 mm
stroke 2 in
closed height: 100 mm
closed height: 3.9 in
capacity: 99.8 / 10.2 (kN/t)
capacity: 22.436 lbf
effective pressure area: 13,9 cm2
effective pressure area: 2,2 sq. in.

GENERAL SPECIFICATIONS:
required oil content (effective) 69,3 cc
required oil content (effective) 2,3 oz
connection A 118
cylinder type short stroke
acting type single
return type spring
material steel

WEIGHT:
weight, ready for use 2,9 kg
weight, ready for use 6,4 lb

Features & Benefits:
• Compact version, efficient in case of limited insertion space
• Stroke of 50mm on all models
• Dirt scraper ring - Protects against pollution - Increases the life span
• Superior seal for an excellent static and dynamic sealing • Splined plunger, no saddle needed
• High flow female coupler A118
